2 Horse: 7' Tall Inside Height, 7K, Overall Height 8', Trailer Body Length 13' 3", Overall Length 16' 4", Floor Height 14", Empty Weight 2975#, Hitch Weight 375#, Payload Capacity 4025#.
3 Horse: 7' Tall Inside Height, 10K, Overall Height 8' 1", Trailer Body Length 17' 3", Overall Length 20' 4", Floor Height 15", Empty Weight 3750#, Hitch Weight 550#, Payload Capacity 6150#.
4 Horse: 7' Tall Inside Height, 10K, Overall Height 8' 1", Trailer Body Length 19' 3", Overall Length 22' 4", Floor Height 15", Empty Weight 4250#, Hitch Weight 560#, Payload Capacity 5650#.

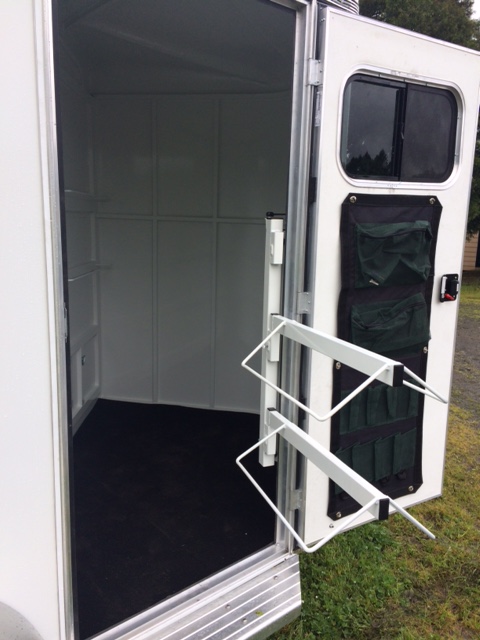

Standard Options on 2H & 3H & 4H: 6" Roof Radius, 6' 8" Inside Width, 82" Outside Width, 102" Overall Width (Including Fenders), Electro-Galvanized Sheet Metal, Epoxy Primer & PPG Polyurethane Paint, Sealed & Enclosed Diagonal Wall, Telescoping Padded Dividers, Double Wall Construction, 24" Front Diamond Plate, Diamond Plate on Tongue & Sides, Double Rear Doors (no windows), Water Tank, Roof Vent in Tack Room, 10 Bridle Hooks, 2 Blanket Bars, Swing Out Saddle Tree, Caulk Pkg, Floor Mats, Roof Vent in Stall Areas, Head & Kick Wall Mats, Diagonal Wall Mats, Rear Door Mats, 30" x 24" Drop Down Feed Door Windows, 24" x 20" Kick Side Windows, Rear Load Light w/Switch, Rubber Dock Bumper, Smooth Aluminum Fenders, Smaller Aluminum Step Plates, 32" RV Side Door w/Window, Tack Door Organizer, LED Lights, 4 Wheel Electric Brakes, Silver Modular Radial Tires.
Thuro-Bilt Inc
Call us: 541-670-8701

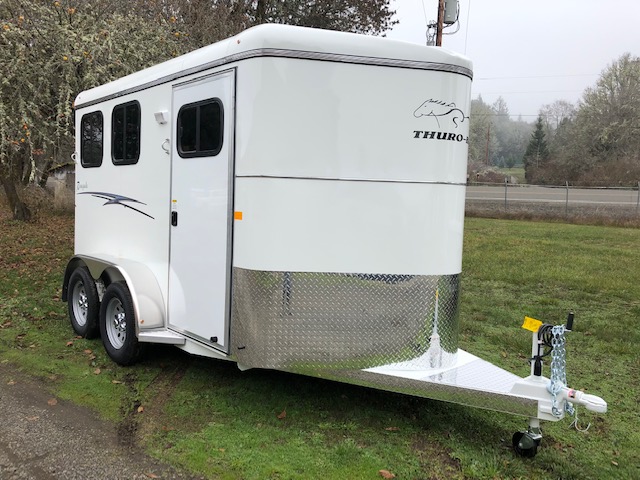

Renegade (Available in 2H or 3H or 4H) - Custom Quotes Available
Open File Below for Printable Renegade Spec Sheet
INTRODUCING THE NEW & IMPROVED RENEGADE.

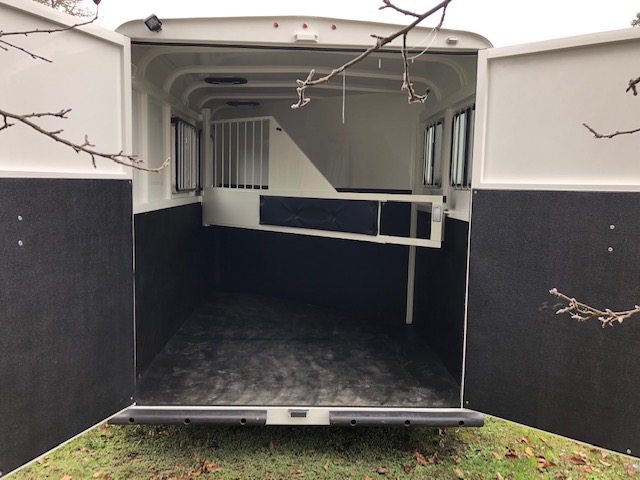

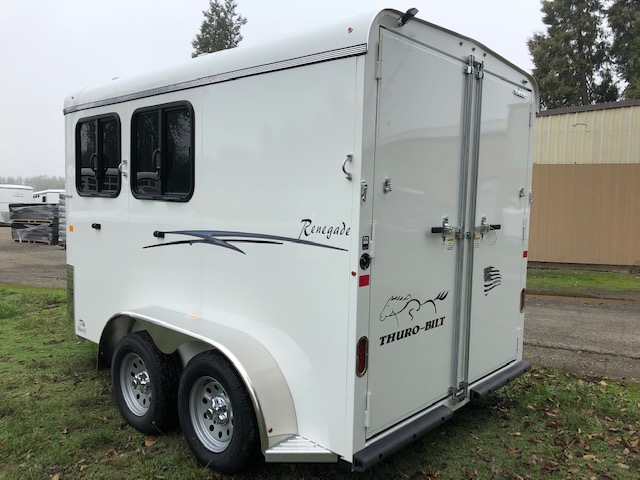

We've added a water tank, double rear doors (no windows), rear flood light, roof vent in tack room, roof vents in the stalls, & 5 extra bridle hooks.
